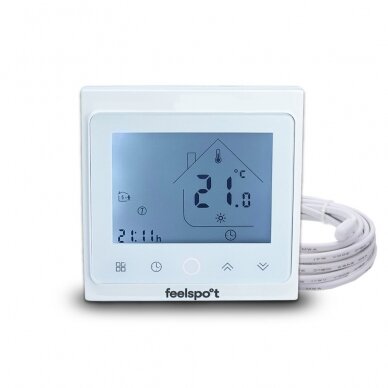

Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW is an electronic programmable thermostat designed to control underfloor heating devices. The touch screen allows quick and convenient control of the heating system, and six programmable operating times ensure maximum comfort and reduce electricity costs. Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW is suitable for use in commercial, industrial, civil and residential premises.

Advantages:

• Modern design;
• Touch screen;
• Simple installation;
• Both air and floor temperature can be controlled with the help of internal and external sensors;
• Six programmable time intervals for maximum comfort and economy.

Technical information:

• Protection class: IP20;
• Sensor: NTC;
• Accuracy: ±1 °C;
• Set temp. range;
• Power consumption: < 1.5 W;
• Timing error: <1%;
• Power supply: 95-240 V AC, 50-60 Hz;
• Electric current (for electric heating): 16 A;
• Body material: PC + ABS;
• Dimensions: 86 x 86 x 13.3 mm;
• Ambient Temp./Humidity limits: 0-45°C / 5-95% RH;
• Depth of the hole in the wall (for installation): 60 mm.

The set includes:

• Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW - 1 pc.;
• Screws - 1 pc.;
• Installation/programming instructions - 1 pc.;
• Wall plate - 1 pc.;
• 2.5 m external sensor - 1 pc.

Download the product manual
