USE

Ideal for air extraction in bathrooms, toilets and small/medium sized rooms.
Suitable for extracting the desired air directly to the outside or through a short extraction pipe.

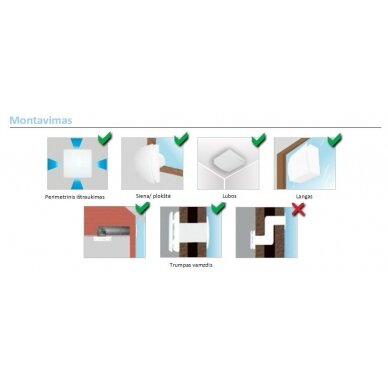

These devices can be mounted on walls/panels, ceilings and windows.

SPECIFICATIONS

The body , made of the highest quality ABS plastic, is long-lasting, impact-resistant and strong. The body of the device is covered with white RAL 9010 paint and is resistant to UV rays.
The unique design of the propeller rotor offers improved aerodynamic characteristics, low noise levels and improved efficiency.
Single-phase induction motors are equipped with integrated thermal protection, which is mounted on an insulated, high-quality sliding bearing. Suitable for continuous and uninterrupted work.

FEATURES AND BENEFITS

IPX4 protection class.

The aesthetic flat front cover blends in with the modern design interior and is easily removable for cleaning.
The firm optimized support prevents deformation, as it has reinforced guards and is designed to maximize airflow.
An integrated non-return valve is installed to prevent air from being drawn back into the room when the fan is off.
Low power consumption: The 100mm model consumes less than 8 watts of power to save energy.
Fully recyclable plastic components are environmentally friendly.
Double insulated - no earth connection required.
Meets the latest standards: devices are tested in the recognized TUV Rheinland Aerauliqa laboratory, which applies the latest accurate data on electrical safety, device performance and noise levels that can be relied upon. Designed and manufactured according to EN60335-2-80 Directive (Low Voltage Directive) and EMC Directive (Electromagnetic Compatibility Directive).

VERSIONS
With timer (T)
A timer is installed in the fan, which allows you to choose an adjustable cycle from ± 1 to 25 min.
Control: after the fan is turned off, it continues to run for a set period of time.

With humidity sensor and timer (HT)
The fan is equipped with an electric circuit with a humidity sensor (adjustable from 50 to 95 RH) and a timer adjustable from ± 1 to 25 min.
Control: When the relative humidity percentage is higher/lower than the set point, the fan is automatically turned on/off. After the fan is turned off, it still works for a set period of time.

The motor with ball bearing (BB) ensures a longer operating period (30,000 h), ideal for cold climate conditions. Suitable for ceiling mounting.

With cord switch (PC)
The fan is controlled by a pull cord on/off switch.

With humidity sensor - timer - switch - cord (HTPC)
The fan is equipped with an electric circuit with a humidity sensor (adjustable from 50 to 95 RH) and a timer adjustable from ± 1 to 25 min.
Control: When the relative humidity percentage is higher/lower than the set point, the fan is automatically turned on/off. After the fan is turned off, it still works for a set period of time. A built-in cord switch allows you to turn the fan on/off manually.
