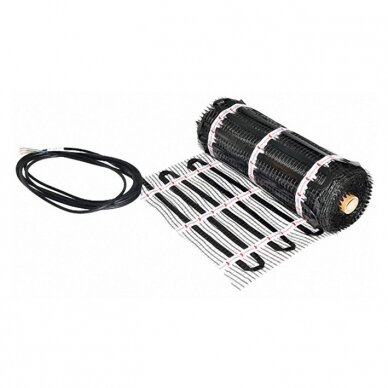

The Warmset BLACK underfloor heating grid features a new infrared technology. This heating system is easy to install under tiles. It is usually laid in layers of glue or screed. Depending on the size of the room, heating can be done with one or more rolls of WARMSET Black mesh.

Features:
• Power: 150 W/m ² . According to a separate order, it is possible to order from 30 to 300 W/m ² ;
• Insulation resistance up to 80 °C;
• Warranty: 10 years. The warranty applies after filling out the technical passport in the product manual;
• Complies with the electrical installation directive (BS7671:2008) standard EN60335-2-96;
• Due to the convenient structure, the grid can be installed quickly and easily;
• Extremely thin (only 3 mm);
• Ideal for installation in smoothing or adhesive layers;
• Suitable for wet installation under tiles, stone, ceramic or glued wood floors;
• Protection class: IPX7.

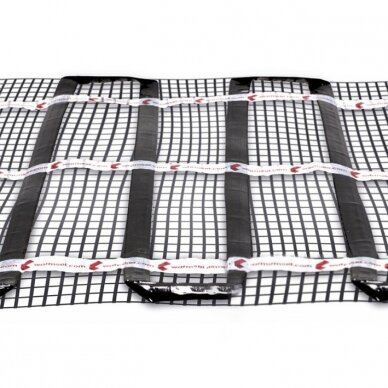

The Warmset floor heating system consists of a 17 mm wide strip placed on a fiberglass mesh with a standard width of 500 mm. The wires inside the tape are mainly made of aluminum and other metal alloys covered with a polypropylene film. The mesh has an average thickness of 3-4mm with a maximum of 6mm front to back connection. The length and power of the mesh roll can be varied: 1 - 40 m long and from 30 to 300 W/m2. As standard, you can purchase a 150 W/m2 grid.
The gap between the heating strips varies from 25 to 70 mm (depending on the W/m2 power). The standard length of the electric cable is 5 m.
Thanks to its two-wire structure , the Warmset BLACK mesh does not emit electromagnetic radiation.

The packaging of these underfloor heating mats is made from at least 40% recycled materials and is environmentally friendly!​​

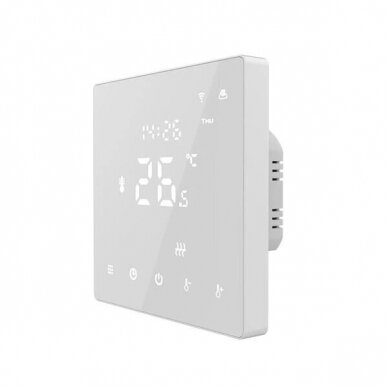

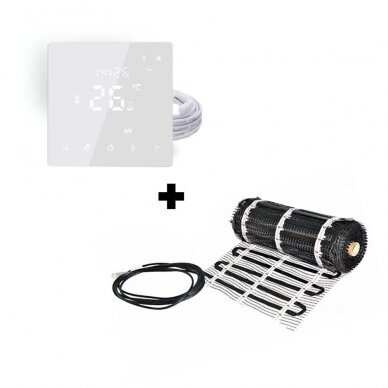

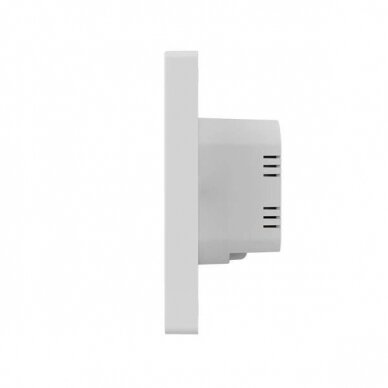

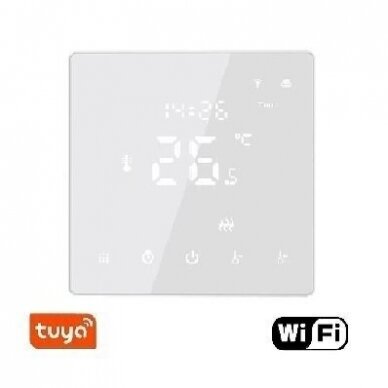

Programmable thermostat Feelspot WTH22.16 NEW WiFi

Modern programmable thermostat - thermoregulator Feelspot WTH 22.16 NEW together with the WiFi function allows you to conveniently control the operation of electricity, water and gas heating systems, maintaining the optimal temperature indoors. The programmable thermostat Feelspot WTH22.16 NEW is controlled remotely with the "Tuya" or "Smart Life" app. The mobile app can link multiple thermostats as a group and control them at the same time! The Feelspot WTH 22.16 NEW programmable thermostat has 7 operating schedules, which allows you to create maximum comfort and thus reduce electricity costs. IP20 protection class electronic programmable thermostat (thermoregulator) Feelspot WTH 22.16 NEW is suitable for use in commercial, industrial, public and residential premises.

Technical characteristics:

• Voltage: 90-240 V AC;
• Error of set temperature: 0.5°C;
• Floor sensor: NTC (10k) 1%;
• Maximum load: 16A (3600W);
• Limit temperature range: 1 - 70°C;
• Temperature adjustment range: 5 - 35°C;
• Dimensions (mm): 86 x 86 x 10;
• Programmable;
• Installation: recessed into the wall;
• Protection class: IP20;

Advantages:

• Modern design;
• Internal and external sensors;
• Childproof lock;
• Vacation mode (heat support can be programmed for up to 30 days);
• The set temperature is maintained with an accuracy of 0.5°C;
• Saving data after power off;
• External sensor temperature data;
• Possibility to connect and control the thermostat with a smart device, compatible with Android and iOS operating systems;
• Ability to connect several thermostats as a group and control them at the same time;
• The ability to add other people to your family circle and let them control your linked devices.

Programming modes:

• Automatic mode;
• Temporary manual mode;
• 24 hours mode (6 period program);
• 5/2 day programming mode (factory default) ;
• 6/1 day programming mode;
• 7-day programming mode;
• Vacation mode (up to 30 days).

Warranty:

Thermostat - 36 months.
Important! The 10-year warranty for the underfloor heating grid is applied after filling out the technical passport, which you will find after downloading the warranty magazine.

Download the thermostat manual
Download the warranty magazine
Download the grid instruction
