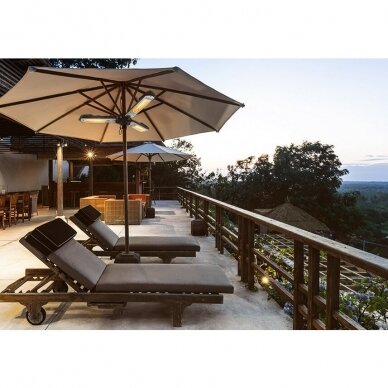

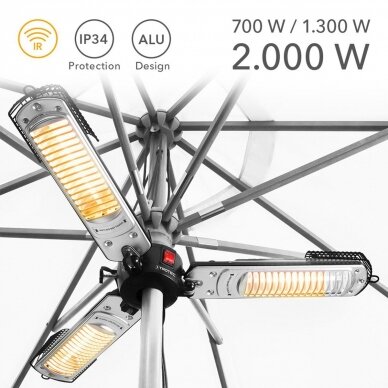

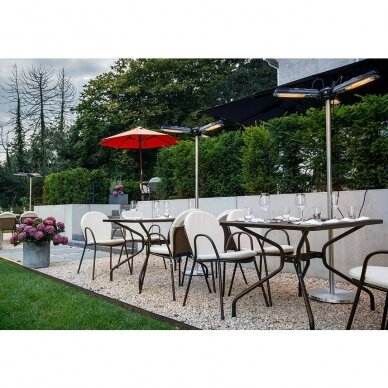

The Trotec Umbrella IR 2005 SC Halogen Infrared Heater is a smartly designed 3-wing radiant heater specially designed for easy mounting under almost any outdoor umbrella to provide pleasant warmth without taking up extra space in the garden, outdoor restaurants and bars, outdoor events and fairs.

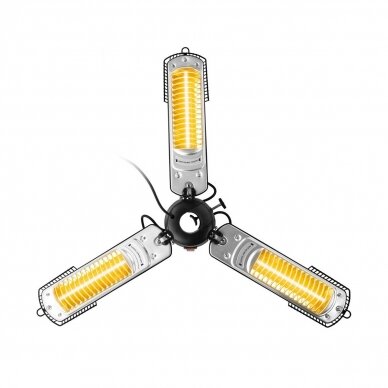

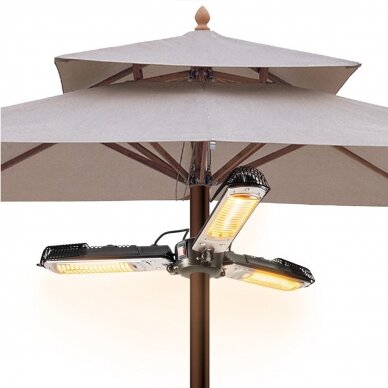

The heater, made of weather-resistant aluminum and protected against water splashes according to protection class IP34, can be mounted on the umbrella rod in just a few simple steps (suitable for Ø 2.5 cm - 6 cm). Non-slip fastening is done without tools, using a rotary locking screw. The design of the heater with 90° vertically adjustable heating arms guarantees intense 360° heat in all downward directions, up to 10 m². The heating intensity of the three heating elements can be adjusted as needed: in the first heating stage (700 W) one, in the second stage (1,300 W) two, and in the third stage (2,000 W) all three heating elements are activated. Unlike other outdoor heaters, the halogen infrared heater Trotec Umbrella IR 2005 SC primarily heats the skin and other surfaces, not the ambient air. Thanks to this operating principle, it heats noticeably more intensively and efficiently than other heating technologies without causing unpleasant odors or noise.

Advantages:

• Preheating is not required;
• Durable, high-quality materials;
• 360° even heat downwards in an area of ​​up to 10m²;
• Clean heating without smell and sound;

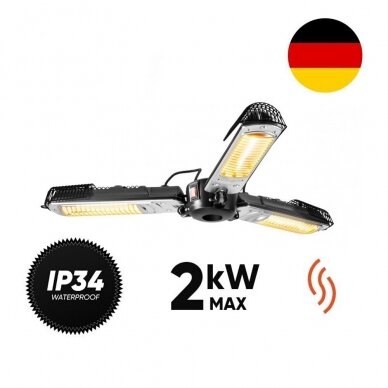

• 3 heating levels, up to 2000 watts of heating power;
• Exclusive and thoughtful design;
• Installed in just a few steps;

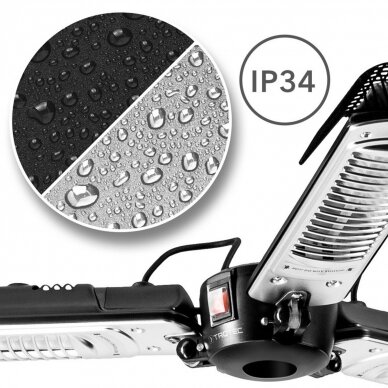

• Protection against water splashes: IP34;
• Protective grilles against contact;

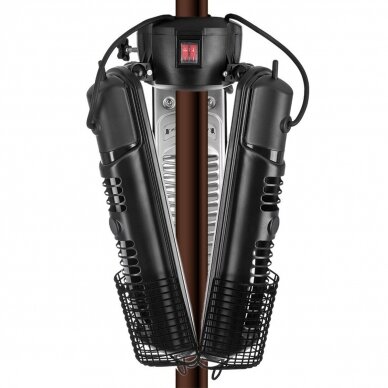

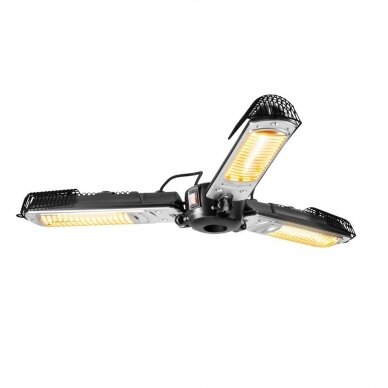

• Space-saving design with 3 folding heating arms;
• Suitable for most sun, restaurant and terrace umbrellas (Ø 2.5 cm - 6 cm);
• Energy saving.

Technical characteristics:

• Heating power (W): 2000;
  • Level 0.7 kW;
  • Level 1.3 kW;
  • Level 2 kW;
• Heated area (m²): 10;
• Power supply: 220 - 240 V/50 Hz;
• Rated current (A): 8.6;
• Connector: CEE 7/7;
• Cable length (m): 1.8;

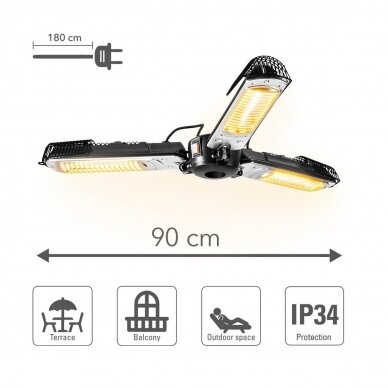

• Dimensions (mm): 900x900x100;
• Weight (kg): 3.5;
• Protection class: IP34;

Download the product manual
