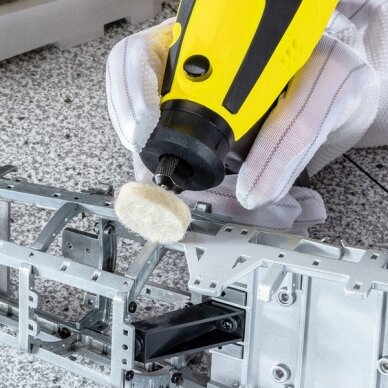

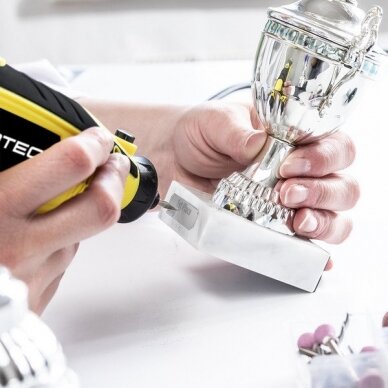

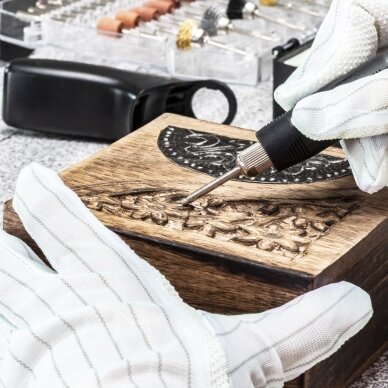

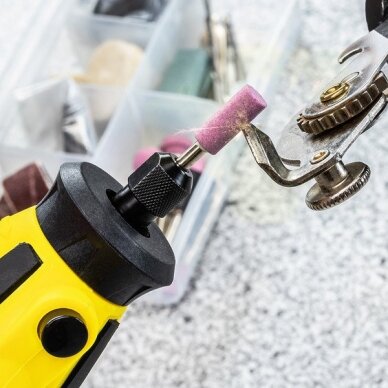

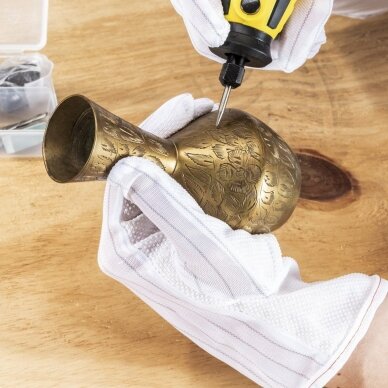

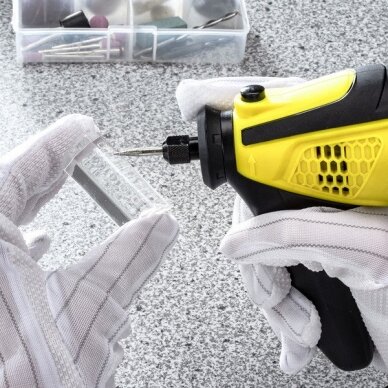

Thanks to the multifunctional tool TROTEC PMTS 01-230V, you will be able to perform work that requires precision and care, such as creating models, polishing jewelry, and more. This device is used for drilling wood and metal; for wood and plastic milling; for cutting wood, plastic, non-ferrous metals, fasteners; for sanding small, dry areas; for metal, plastic, glass, ceramic, wood, leather engraving and polishing.

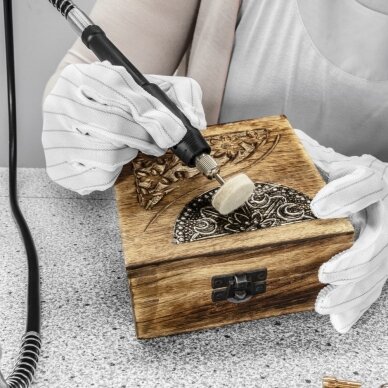

At the same time, an extremely flexible shaft is added for convenient work, to reach hard-to-reach places. Depending on the material to be processed, the nominal speed can be selected from 10,000 min-1 to 35,000 min-1 without interrupting the work. Using the included positioning device, the depth setting can be smoothly reduced from 0 mm to 20 mm during milling operations. The additional handle allows you to work with both hands and thus safely control the tool.

Technical characteristics:

• Mains connection: 1/N/PE ~ 230 V / 50 Hz;
• Power: 170 W;
• Nominal idling speed value: 10,000-35,000 min ^-1 ;
• Cable length: 1.8 m;
• Protection class: II;
• Sound pressure level: 72 dB(A);
• Sound power level: 83 dB(A);
• Uncertainty K: 3 dB(A);
• Dimensions: (LxWxH): 250x40x60 mm;
• Weight: 0.65 kg.

Advantages:

• A powerful 170 W motor that works continuously even under load;
• Universal rotary tool for grinding, drilling, cutting, milling, engraving and many other jobs;
• Suitable for working with various materials: wood, metal, plastic, ceramics, glass;
• 85-piece accessory set with universal tool bits;
• 6 levels of speed selection for work matching the material;

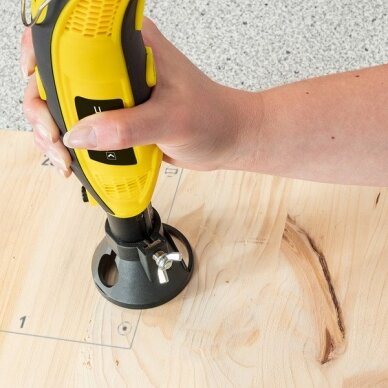

• Positioning device with depth scale for precise drilling and grooving;

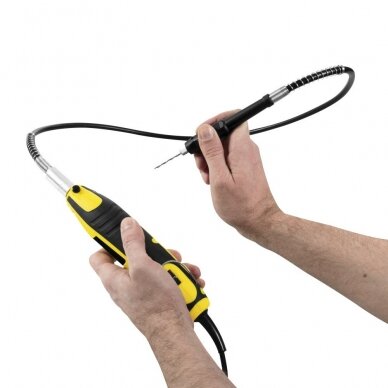

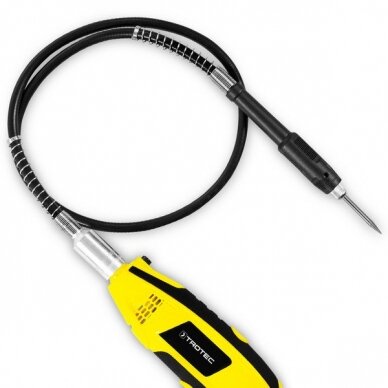

• A 107cm extra flexible shaft is included for creating extra fine ornaments;
• Additional handle for convenient and safe device management;
• Wide range of operation thanks to a strong 1.8 m long rubber cable;
• Ergonomic design, ensuring better management and ease of use;

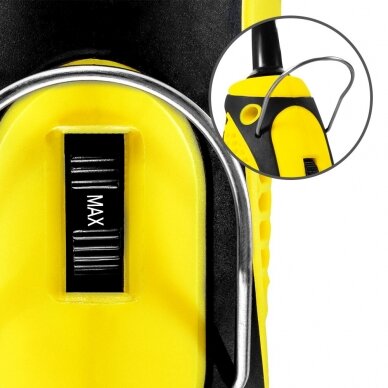

• Metal loop for hanging the device - for undisturbed work.

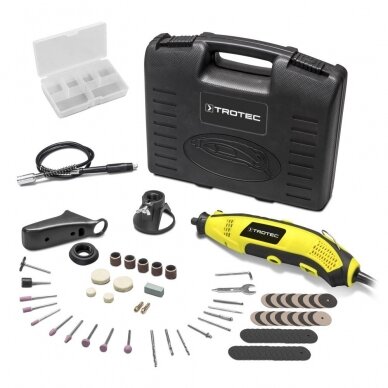

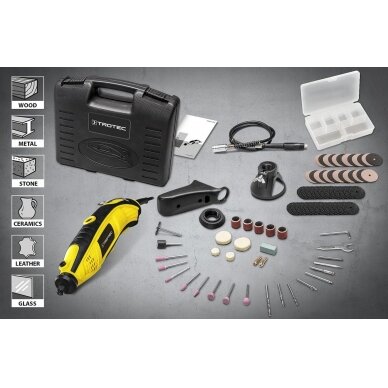

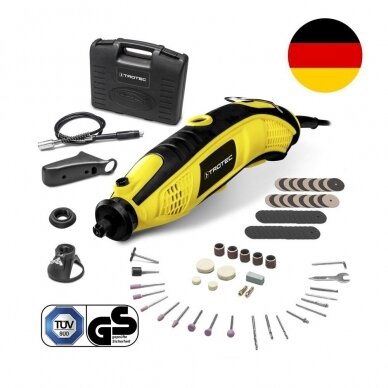

The set includes:

• 1 flexible shaft;
• 1 additional handle;
• 1 handle fixing screw;
• 1 positioner with depth setting function (0-20mm);
• 1 tightening key;
• 1 locking key;
• 1 clamping clip for cut-off/grinding discs;
• 25 cutting discs;
• 25 grinding discs;
• 1 compression clamp (3.2 mm);
• 1 compression clamp (2.3 mm);

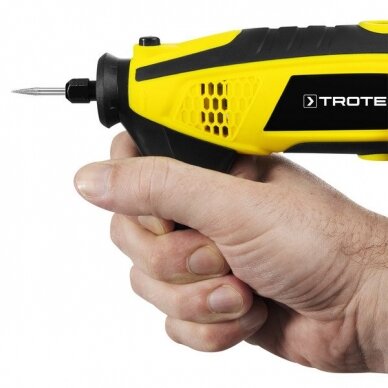

• 2 engraving blades with diamond tips;
• 2 sanding belt clamping clips;

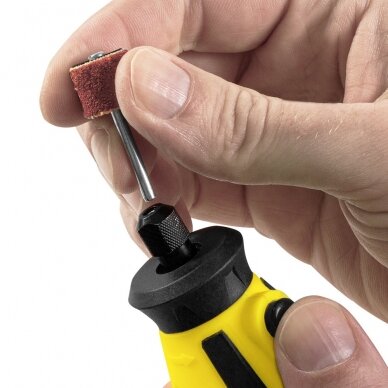

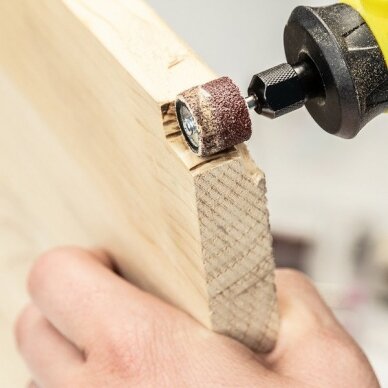

• 5 sanding belts;
• 1 high-speed steel spiral drill (3 mm);
• 1 high-speed steel spiral drill (2 mm);
• 8 aluminum oxide grinding heads;
• 1 clamping clip for polishing accessories;
• 4 polishing accessories;
• 1 grinding stone;
• 1 milling cutter (for grooves);
• 1 milling cutter (ball head);
• 1 stainless steel brush;
• 1 accessory storage box;
• 1 shipping case.
