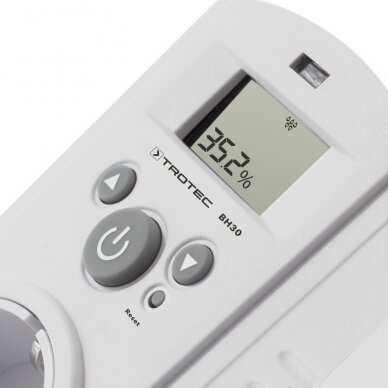

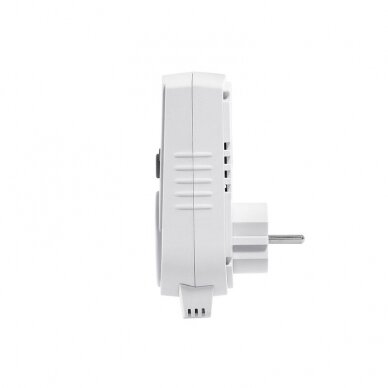

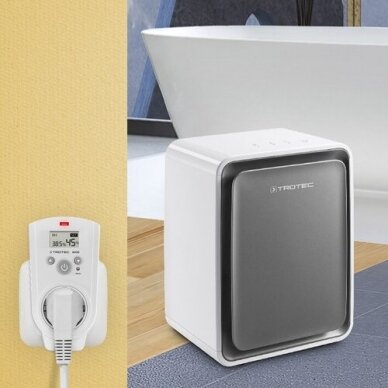

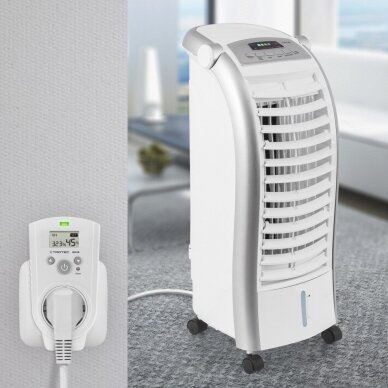

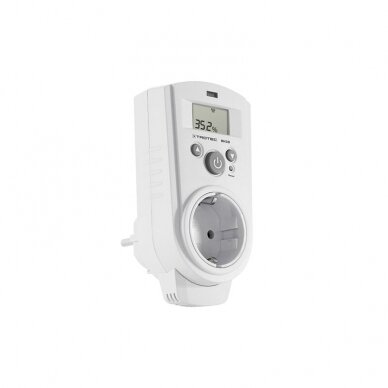

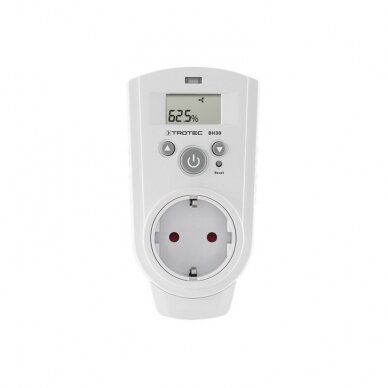

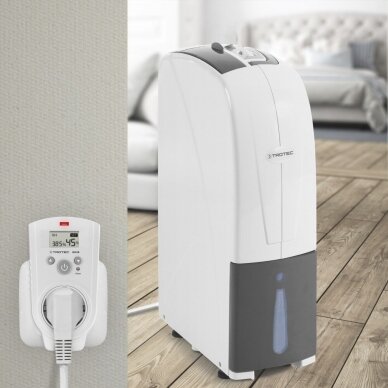

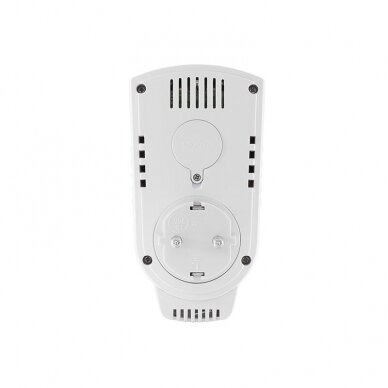

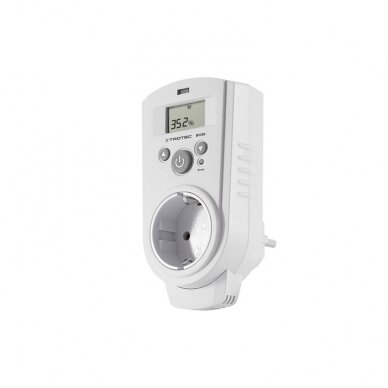

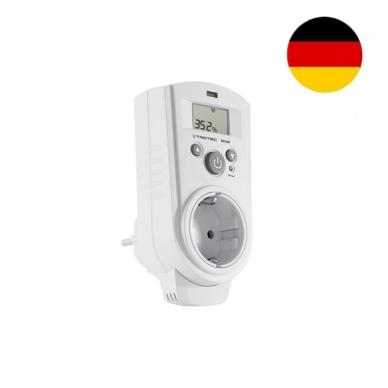

The plug-in hygrostat Trotec BH 30 allows you to adjust the humidity level in 1% steps, in the range from 20% to 90%, using connected humidifiers, air coolers or dehumidifiers. A convenient plug adapter automatically switches these devices on or off, ensuring a pleasant climate and saving energy – avoiding unnecessary equipment downtime. When the humidity in the air exceeds or falls below the set limits, the plug-in hygrostat automatically turns on or off the connected humidity control devices, e.g. a humidifier if the air is too dry and a dehumidifier if the humidity level is too low. This plug-in hygrostat is ideal for use with devices that do not already have a built-in hygrostat function.

Advantages:

• Simple management and programming;
• Constant adjustment of humidifiers and dehumidifiers to the set humidity value;
• Humidity level adjustment from 20% to 90% RH;
• Protection against unnecessary operating time due to automatic device activation/deactivation;
• The operating status can be recognized by the red or green indicator light;
• Easy-to-read display;
• The function of resetting the selected settings;
• Space for a spare battery to save selected settings.

Technical information:

• Control range min.: 20% RH;
• Control range max.: 90% RH;
• Accuracy: ± 5% RH;
• Protection class: IP30;
• Measurement interval: 10s;
• Resistive load: 16 A / 3.680 VA;
• Inductive load: 9 A / 2.070 VA;
• Connector: CEE 7/3;
• Monochrome LCD screen;
• The device is controlled using buttons;
• Plastic body;
• Insulation: protection class I;
• Power supply: Battery type 1x 3V, CR2032;
• Power supply: 230 V / 50 Hz;
• Operating environmental conditions - temperature: from 5°C to 35°C;
• Operating environmental conditions - ratio humidity: max. 95% RH;
• Environmental storage conditions - temperature: -10°C to +50°C;
• Environmental storage conditions - humidity: max. 80% RH;
• Dimensions: 126x68x76 (mm);
• Weight: 0.165 kg.

Download the product manual
