Precise alignment is easy, using laser precision instead of a spirit level.

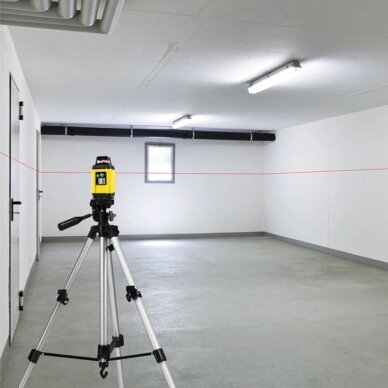

The battery-operated 360° rotary laser BD7A, which can be used anywhere, makes it easy to project a horizontal laser line, e.g. to fix or mark wallpaper borders, wall tiles, wall cabinets or accurately drill dowel holes at the same height. And it's on all four walls at once!

Three projection modes for almost all alignment jobs, as well as a multi-functional combination holder, make the compact 280g laser an indispensable precision tool for craftsmen and DIY enthusiasts. With a ¼ inch thread on the bottom of the unit, the rotating laser can also be mounted on commercially available tripods. Of course, Trotec also offers you a stable universal telescope stand for the BD7A and many other applications.

The integrated latest-generation lithium-ion battery BD7A ensures long-term operation and maximum operating time. Even with frequent partial discharge during daily use, the Li-Ion battery guarantees a long service life without the memory effect known from conventional NiCd batteries.

Technical specifications:

• Inclination measurement - automatic leveling range: ± 3°;
• Laser range: up to 10 m;
• Laser class: 2;
• Laser performance < 1 mW;
• Wavelength: 650 nm;

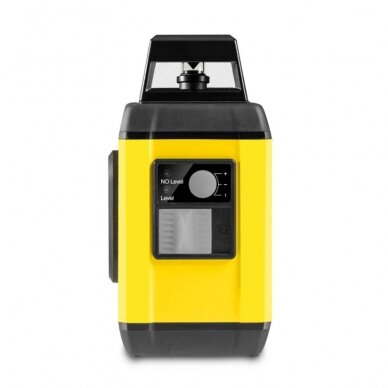

• Display: 2 status LEDs (red/green);
• Aluminum body;
• Power supply: internal LiPo battery 3.7 V DC / 1000 mAh;
• Ambient temperature: -20 °C to +50 °C;

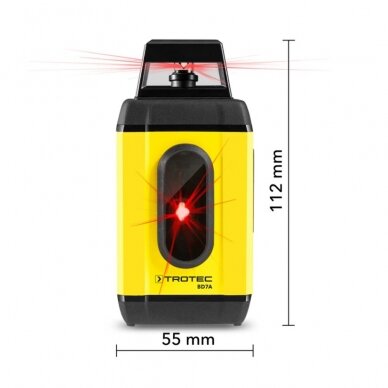

• Dimensions (L x W x H): 55 x 55 x 112 mm;
• Weight: 280 g,

Advantages:

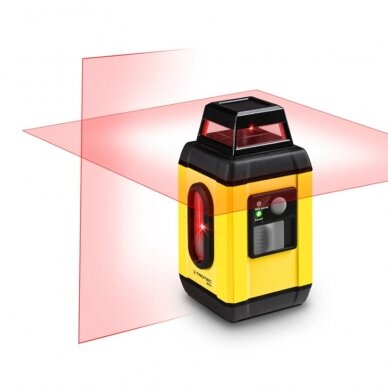

• 3 projection modes: 360° horizontal mode, cross line mode, 90° vertical mode;
• Projects high-speed laser lines at a distance of up to 10 m;
• Self-aligning rotating laser - always automatically straightens;
• Error only ± 0.8 mm/m accuracy (at 0 °);
• Optimal for quick and straight drilling of holes, paintings, tiles, wallpaper, wall cabinets, shelves, etc. for smoothing;
• Visual warning when out of auto-leveling range;

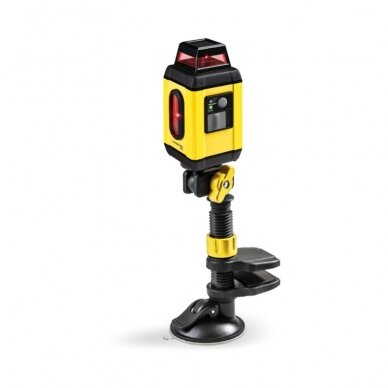

• With multi-functional combined holder with universal clamp and suction cup;
• Modern laser technology with extremely easy management;
• Extremely light and extremely compact;
• Use anytime, anywhere thanks to battery life;
• Durable lithium-ion battery, whose durability ensures maximum operating time;
• Laser shutter function for projecting and diagonal lines;
• Control switch with transport position for safe positioning of the laser when changing location;

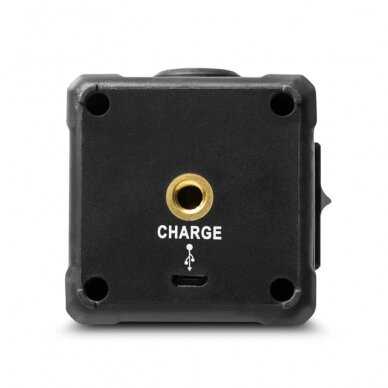

• Integrated ¼ inch tripod thread;
• Strong aluminum body;
• Fast charging via the included micro USB cable;
• A telescopic stand is available as an optional extra.
