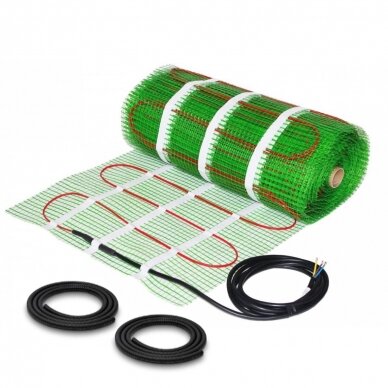

"Wellmo MAT" is a high-class underfloor heating grid for installation directly under a layer of ceramic tiles, parquet or plastic covering.

Innovation and convenience

The Wellmo heating grid is controlled by a floor thermostat with a maximum temperature adjustment limit of +35 ℃. Thanks to the innovative control, temperature regulation becomes very simple and convenient.

Practical

This heating grid is very practical as it can be cut as needed (most importantly, cut carefully to avoid damaging the heating cable). Due to this feature, the grid is easily adapted to rooms of different square footage.

Very thin

The Wellmo heating mat is very thin - 3.0-3.8 mm, which makes installation easier and requires less floor lifting. This is especially true in renovated rooms, where the height of the raised floor can be very minimal.

Universal

Wellmo mesh is versatile as it is suitable for laying under many types of floor coverings, such as laminate, tiles, parquet, vinyl flooring, thin concrete flooring, marble, etc.

Effective operation

Due to the small thickness of the Wellmo grid, the heat reaches the surface faster, so you can feel the heating effect in the room faster.

Simple installation

Installation of the grid is simple and does not require special preparation. You only need to remove the protective layer of the double-sided adhesive tape and press it to the base with light hand movements. After this is done, the leveling compound is poured or the tile adhesive is applied. The most important thing is to follow all the safety instructions in the manual.

Features :

• Very thin - 3.0 mm (mesh size from 0.5 m2 to 7 m2 ) - 3.8 mm (mesh size from 8 m2 to 12 m2 ).
• The length of the cold wires is 3 m.
• Mains voltage is 230 V.
• ETFE/ Teflon insulation.
• Multi-core copper conductor.
• Aluminum foil.
• Distance between conductors <-> 9 cm.
• Sticky mat.
• Double-sided tape.
• Corrugations x 2 (2 m each).
• Instruction in Lithuanian.

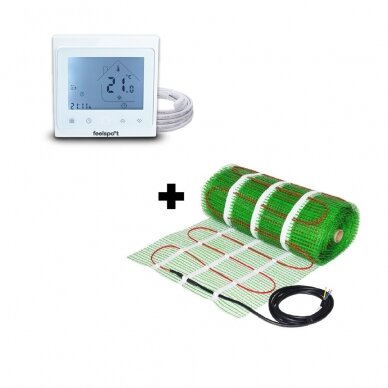

Feelspot WTH51.36 NEW is an electronic programmable thermostat (thermoregulator) for controlling electric underfloor heating devices. It is possible to connect a 2.5 m long external temperature sensor.

Advantages:

• Modern design;
• Touch screen;
• Simple installation;
• Both air and floor temperature can be controlled with the help of internal and external sensors;
• Six programmable time intervals for maximum comfort and economy.

Technical information:

• Protection class: IP20;
• Sensor: NTC;
• Accuracy: ±1 °C;
• Set temp. range;
• Power consumption: < 1.5 W;
• Timing error: <1%;
• Power supply: 95-240 V AC, 50-60 Hz;
• Electric current (for electric heating): 16 A;
• Body material: PC + ABS;
• Dimensions: 86 x 86 x 13.3 mm;
• Ambient temp./humidity limits: 0-45°C / 5-95% RH;
• Depth of the hole in the wall (for installation): 60 mm.

Warranty:

Wellmo Mat grids - lifetime warranty;

Thermostats - 2 years.

Download thermostat manual Download grid manual
