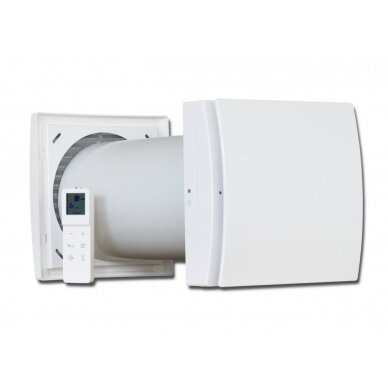

Mini recuperator Quantum NEXT is perfect for ventilation of rooms such as living room or bedroom. The extremely low energy consumption device can be 150mm in diameter. For best effect, 2 units are often used, combining their operation to operate simultaneously in parallel, in opposite directions, or in synchronized flows.

Technical characteristics:

• Max. air flow (m³/h): 60/50/40/30/20;
• Power (W): 6/4.5/3.5/2.5/2;
• Maximum noise level (dBA): 29/24/20/14/10;
• Ambient temperature max.: -20°C /50°C;
• Hole diameter (mm): 158;
• Protection class IP: X4;
• Weight (kg): 4.4;

Specifications:

• The body and wall part, made of the highest quality ABS plastic, are long-lasting, strong and impact-resistant. The body of the device is covered with white RAL 9010 paint and is resistant to UV rays;
• Remote control with a special bracket that can be attached to the wall. Multifunctional, with an LCD screen that allows you to monitor the status of the device and can control up to 10 devices;
• The unique design of the screw rotor has improved aerodynamic characteristics, low noise level and increased efficiency;
• For efficient electricity consumption, the recuperator is equipped with electric (EC) rotor motors, which use the highest quality, long-lasting ball bearings with thermal protection. Designed and suitable for continuous operation;
• Regenerative ceramic heat exchanger that ensures high thermal efficiency with a washable dust filter;
• The telescopic pipe is adjusted according to the thickness of the wall;
• External grill with insect net;
• Air-tight outer cover, coated with white RAL 9010 paint, with sound insulation and protection against insects (can be ordered additionally).

Features and benefits:

• The aesthetic flat front cover blends in with the modern design interior and is easily removable for cleaning;
• Backup button on the side of the fan;
• Automatic inversion time control (comfort mode) to optimize acoustic and thermal comfort;
• Integrated multi-colored LED lights that inform about the status of the device;
• Intelligent humidity management;
• Simplified synchronization of devices (up to 10 units);
• Easy and safe maintenance thanks to the magnet system that allows the ventilation unit to be removed from its base;
• Automatic protection against freezing;
• No water drainage required;
• Simplified electrical installation;
• Fully recyclable plastic components are environmentally friendly;
• Double insulated - no grounding required;
• Remote.

With the help of the remote control, you will be able to adjust:

• air flow direction (variable, air extraction, air supply);
• enable ventilation (free) mode;
• "OFF" position;
• operating speed (5 possible speeds);
• comfort or efficiency mode;
• filter replacement indicator.
