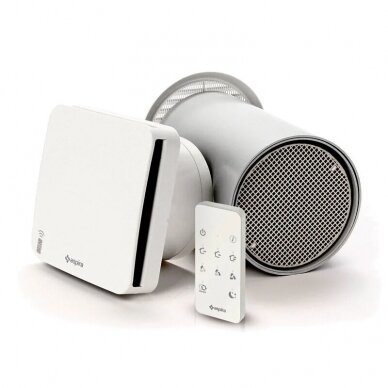

Decentralized ventilation and extraction unit Aspira Ecocomfort 160 RF with efficient 90% heat recovery and remote control

The high-quality, energy-efficient mini recuperator Aspira Ecocomfort 160 RF is designed to ventilate a room in an apartment, individual house or small commercial premises. Wall-mounted mini recuperators are usually installed in old or renovated rooms where it is not possible to install a central ventilation system. For larger apartments (with several or more rooms), it is recommended to install one or even several mini recuperators for each room.

The Ecocomfort 160 RF system consists of one or more mini recuperators with a highly effective heat recovery function. Mini recuperators are installed in the outer walls of the house with a thickness of 28 to 53 cm.

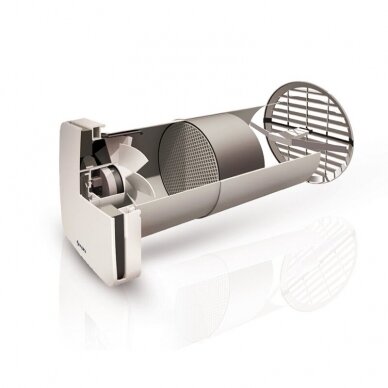

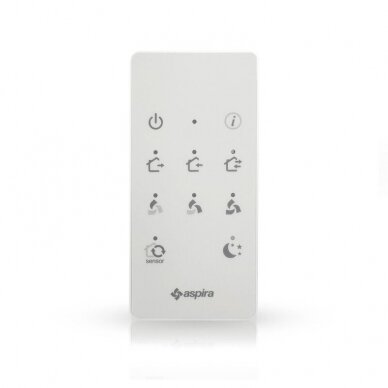

The operation of mini recuperators is based on the principle of regenerative heat recovery, using a ceramic heat exchanger inside the device, which uses the air leaving the room to warm the air entering from outside. The supplied air is filtered with a G3 class filter. The brushless motor with a low level of energy consumption (A+ energy consumption class) is controlled by a microprocessor, which, by processing sensor information (humidity, lighting and temperature), as well as commands given by the user via a wireless control panel, determines the most suitable ventilation mode to ensure better comfort in the room. Temperature adjustment is only possible with the control unit. The remote control with clear and innovative graphics allows the user to set various operating parameters in both manual and automatic modes.

Installation possibility: there is one main recuperator of the "Master" type, controlled by a remote control, to which (maximum 64) additional devices of the "Slave" type can be connected.

Advantages:

• Suitable for rooms up to 50 m²;
• Air flow from 28 to 68 m³/h;
• Freshens the air, provides the necessary amount of oxygen, and at the same time removes excess moisture. All this is good for health, well-being;
• Quick and cheaper installation compared to a centralized ventilation system. Several and more times - lower initial investment. Often the only optimal solution in buildings of old construction;
• Low operating costs. Low noise level;
• There is no need to open the windows to ventilate the premises. This saves up to 90% of heat.
• Ventilation unit with DC motor.

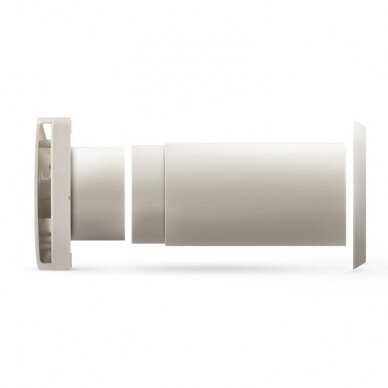

• The telescopic body is made of impact-resistant PVC.
• Round telescopic duct Ø 160 mm.
• Ceramic heat exchanger with >90% efficiency.
• G3 filter.
• Light and humidity sensors.

Technical characteristics:

• 3 levels of operation;
• Air flow: 15 / 28 / 48 / 68 m³/h;
• Power: 2.0 / 3.8 / 6.6;
• Sound level: 27 / 32 / 38;
• Controller protection class: IP20;
• Fan protection class: IPX4;
• Operating temperature: -20°C - 50°C;
• Diameter: Ø 160 mm.
