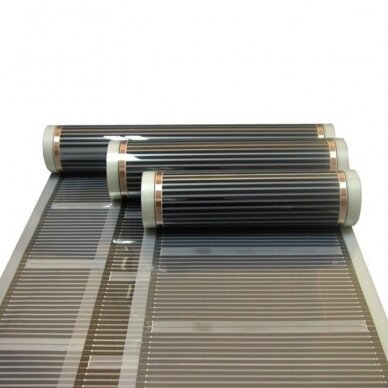

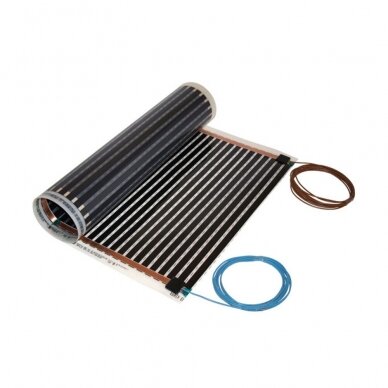

Carbon fiber 0.5 meter wide underfloor heating film Wellmo kit for electric underfloor heating system. The set includes a special technology ultra-thin (0.3 mm) carbon fiber underfloor heating film Wellmo, white thermostat Feelspot WTH51.36 NEW , brown and blue connecting cables, connectors and butyl tape. After installing this system, infrared floor heating is created in the room, so heaters, boilers or radiators are no longer needed for additional heating. The main advantage of the underfloor heating film Wellmo is that it does not heat the air, as most other heating systems do, but the surface of things and the person. Also, it is a great solution in combination with the currently very popular renewable energy - the solar power plant.

Underfloor heating film Wellmo. Why choose?

• Low initial investment. Compared to other heating systems, 2-4 times lower.
• Cheap and quick installation. Complex engineering solutions are not required.
• Energy saving.
• Safe use.
• Economy. Heating surfaces that accumulate heat longer after the system is disconnected.
• Maintenance and service free. The system is programmed before the season and automatically maintains the right temperature at the right time.
• Excellent microclimate. The system does not dry the air, does not raise dust. Heats the walls directly, thus helping to prevent mold.
• Adjusted temperature control. The underfloor heating system can be controlled quickly and conveniently with a thermostat, thus saving electricity costs and ensuring economical consumption.
• The film can be cut every 20 cm in length and connected to each other through the designated places with a cable.

Underfloor heating film and its application

Floor heating film Wellmo is suitable for heating rooms of various purposes: apartments, private residences, offices, homesteads, hotels, catering, medical facilities, kindergartens, etc. The infrared film can be used both as the main way of heating rooms, and as an additional one, when there is a lack of heat or you want to heat only certain rooms. It is extremely convenient to use with a smart Wi-Fi thermostat - then you can adjust the amount of heat directly on your mobile phone, which will allow you to comfortably heat the homestead before your arrival.

Installation and maintenance

The underfloor heating film Wellmo is characterized by simple installation - it can be laid directly under laminate, parquet or vinyl floors. The economical and modern heating system is controlled by a thermostat. The underfloor heating film Wellmo will not cause inconvenience, it does not require additional maintenance work, so it will not cause additional problems or breakdowns over the years.

Technical characteristics:

• Power: 80 W/m²;
• Width: 0.5 m;
• Length: 3 / 3.5 / 4 / 4.5 / 5 meters;
• Thermostat: Feelspot WTH51.36 NEW, white;
• Connecting cable (brown): AV 1.5mm; 5 meters;
• Connecting cable (blue): AV 1.5mm, 5 meters;
• Cable connections: 2 / 4 / 6;
• Butyl tape: 10 / 20 / 30 cm.

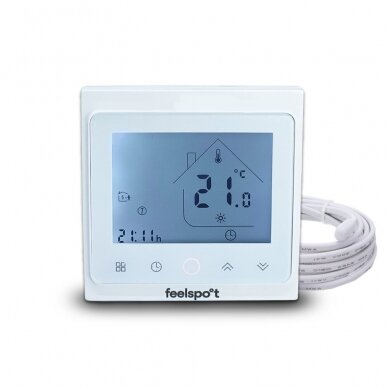

Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW

Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW is an electronic programmable thermostat designed to control underfloor heating devices. The touch screen allows quick and convenient control of the heating system, and six programmable operating times ensure maximum comfort and reduce electricity costs. Electronic programmable thermostat (thermoregulator) Feelspot WTH51.36 NEW is suitable for use in commercial, industrial, civil and residential premises.

Advantages:

• Modern design;
• Touch screen;
• Simple installation;
• Both air and floor temperature can be controlled with the help of internal and external sensors;
• Six programmable time intervals for maximum comfort and economy.

Technical characteristics of the thermostat:

• Protection class: IP20;
• Sensor: NTC;
• Accuracy: ±1 °C;
• Set temp. range;
• Power consumption: < 1.5 W;
• Timing error: <1%;
• Power supply: 95-240 V AC, 50-60 Hz;
• Electric current (for electric heating): 16 A;
• Body material: PC + ABS;
• Dimensions: 86 x 86 x 13.3 mm;
• Ambient Temp./Humidity limits: 0-45°C / 5-95% RH;
• Depth of the hole in the wall (for installation): 60 mm.

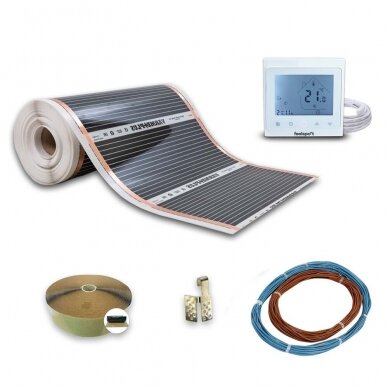

The set includes:

• Wellmo floor heating film;
• Feelspot WTH51.36 NEW, white;
• Thermostat mounting parts;
• Connecting cable (brown) 5 meters;
• Connecting cable (blue) 5 meters;
• Butyl tape.

Download the product manual
Download the thermostat manual
