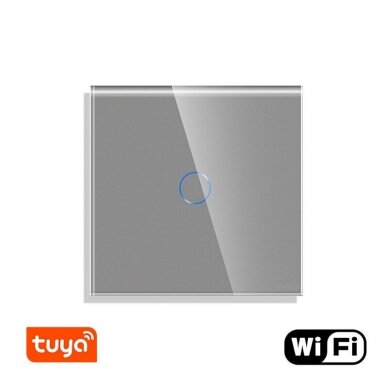

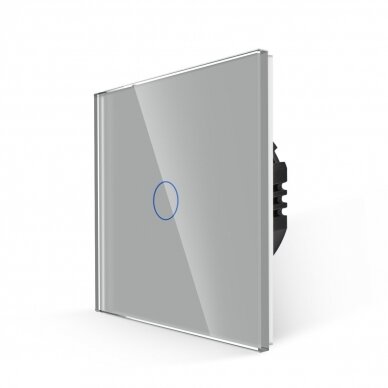

WiFi gray glass 600 W touch single-pole switch Feelspot (set). The WiFi gray glass touch unipolar switch is made of tempered glass, waterproof and fireproof. The high-quality device will allow you to enjoy convenient management and simple maintenance. With a modern design switch, you will be able to control the lighting of one zone in the room when you need it most with one touch. The single-pole sensor switch Feelspot has a built-in LED indicator that shows when the light is on/off, which will help you easily find the switch in the dark, and the built-in WiFi connection will allow you to control your home remotely. The Feelspot single-pole touch switch with simple operation and reliable operation will implement a wide range of technical and interior design solutions that meet the needs of the most demanding customer.

The set includes: gray tempered glass sensor single-pole switch, 600 W mechanism with WiFi function and mounting frame.

Smart control

The integrated WiFi connection will allow you to use the switch intelligently when you are not at home! All you need to do is download the Tuya or Smart Life app to your smartphone via Google Play or Apple store and pair your device(s). In the mobile application, you can turn on or turn off the controlled devices remotely or set a certain on/off time, thus saving electricity. If you have more than one smart device at home that works with Tuya or Smart Life mobile apps, the good news is that you can control all devices quickly and conveniently in one place even when you are not at home.

Download the Tuya or Smart Life app for Android:

Download the Tuya or Smart Life app for iOS:

Advantages:

• The elegant, minimalist design of the switch will fit perfectly into the interior of both classic and modern homes, apartments, hotels and offices;
• The perfectly flat panel is easy to clean;
• Made of durable tempered glass with high scratch and fade resistance;
• A high-quality touch switch with a longer service life than standard mechanical switches - up to 100,000 cycles;
• The soft blue backlight at idle makes it much easier to find the switch in the dark;
• Individual switches are easy to use and easy to connect;
• For all types of bulbs, including traditional bulbs, LED lighting, fluorescent lamps and energy-saving lamps.

Technical information:

• Type: WiFi unipolar sensor switch (single circuit, single module);
• Power: 600W;
• Materials: tempered glass (4 mm, scratch resistant);

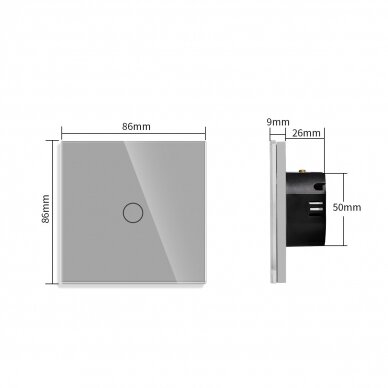

• Switch dimensions: 86 x 86 x 35 mm;
• LED lighting: blue LED (soft at idle and intense when turned on);
• Operating voltage: 110-240V AC 50 / 60Hz;
• Power consumption: ~ 0.02W;
• Operating temperature: -20°C to +70°C;
• Control circuit load: 4-300W;
• Touch sensor life: 100,000 clicks;
• Certificates: CE, RoHS.

Mounting:

• Disconnect power to the circuit in question before starting assembly. This is very important and necessary to calibrate the switch. Installing the switch while the power supply is on may damage it!
• Make sure the load generated by the bulb(s) is within the range described on the sticker on the back of the module.
• Open the panel by turning a flat screwdriver clockwise in the designated area.
• Connect the switch mechanism according to the given diagram.
• Attach the switch to the box. Do not peel off the white sticker from the switch sensor.
• Place the glass plate on the body and turn on the power. Do not apply power without adding the glass plate, as this will cause the switch to be incorrectly calibrated.
• In the next two minutes, the touch is calibrated. The light can turn on and off by itself.
• After calibration, the switch is ready for use.

Connection:

Download the product manual
