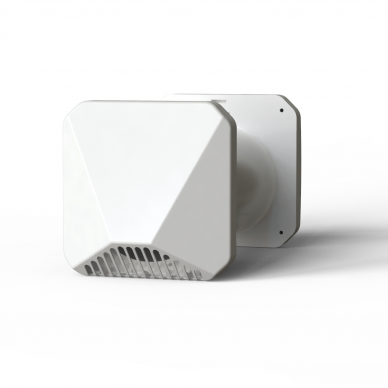

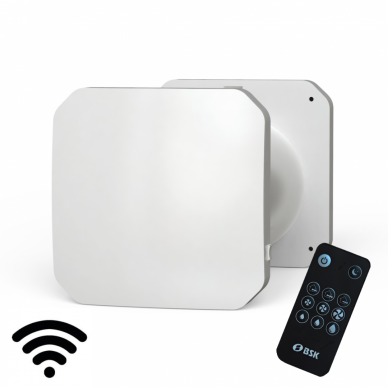

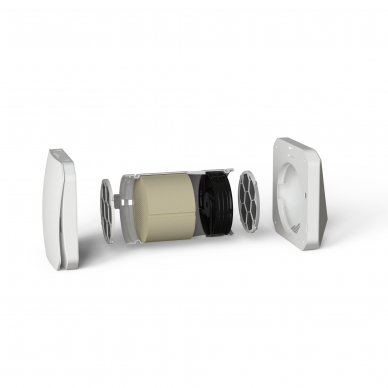

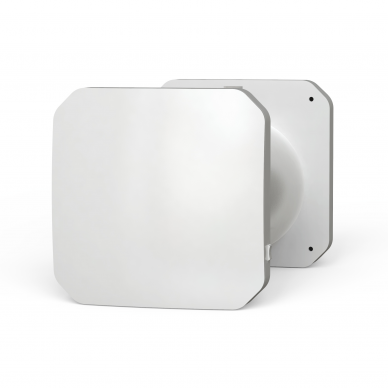

Wall-mounted mini recuperator Zephyr V2.5 T is a ventilation solution for rooms without existing ventilation infrastructure. It is easy to install, works quietly and consumes little energy. It also has wireless connectivity features. The Zephyr V2.5 wall-mounted mini recuperator can recover heat using a two-way fan that heats and cools the ceramic heat exchanger inside. The unit operates on a cycle where air is extracted and supplied in 70 second periods. While the air is extracted from the room, the ceramic heat exchanger will be heated, and when the direction of the air flow changes and fresh air is supplied to the room from outside, it will be conditionally blown inside due to the heat accumulated in the ceramic core. The amount of energy consumed does not exceed a few watts and can reach 90% thermal efficiency, and also allows you to save energy in meeting ventilation needs. You can connect several ventilation devices to each other via Wi-Fi connection, and control the devices with the attached IR remote control.

Advantages:

• WiFi connection installed;
• Air flow from 15 to 60m³ per hour (max.);
• Air flow
• Intelligent control of several ventilation devices in a mobile app on the phone;
• Low energy consumption;
• Remote control;
• Up to 90% thermal efficiency;
• The maximum serviceable air flow is 60 m³/h;
• 4 different performance levels.

Technical characteristics:

• Air flow: 15 / 30 / 45 / 60 m³/h;
• Power: 1.2 / 1.6 / 3.5 / 6.3 W;
• Sound level (at a distance of 1m): 13.2 / 20.2 / 28.8 / 36.9 dB;
• Filter: G3 x 2 pcs;
• Thermal efficiency: up to 90%;
• Diameter of the hole in the wall: 160-180mm;
• Operating temperature: -20 / +40°C.

Download the product manual

Download the product brochure
